Storage Resources

Overview

ARC offers several different storage options for users’ data:

Persistent Storage

Name

Intent

File System

Environment Variable

Per User Maximum

Data Lifespan

Available On

Home

Long-term storage of files

Qumulo

$HOME

640 GB 1 million files

As long as the user account is active

Login and Compute Nodes

Project

Long-term storage of shared, group files

GPFS (replaced a BeeGFS system)

- n/a -

50 TB, ~10 million files per faculty researcher (Expandable via investment)

As long as the project account is active

Login and Compute Nodes

Archive

Long-term storage for infrequently-accessed files

GPFS

$ARCHIVE

-

to be negotiated in accordance with demonstrated need

Login Nodes

Scratch (temporary) storage

Name

Intent

Per User Maximum

Data Lifespan

File System

Environment Variable

Available On

Global Scratch

Short-term access to working files. Automatic deletion.

No size limits enforced

90 days

Vast

- n/a -

Login and compute nodes

Fast Scratch (deprecated)

(deprecated) Short-term access to working files

No size limits enforced

90 days

Vast

- n/a -

Login and compute nodes

Local Scratch (TMPDIR)

Fast, temporary storage. Auto-deleted when job ends

Size of node hard drive

Length of Job

Local disk hard drives, usually spinning disk or SSD

$TMPDIR

Compute Nodes

Local Scratch (TMPNVME)

Fast, temporary storage. Auto-deleted when job ends

Size of node hard drive

Length of Job

Local disk hard drives, usually spinning disk or SSD

$TMPDIR

Compute Nodes

Memory (TMPFS)

Very fast I/O

Size of node memory allocated to job

Length of Job

Memory (RAM)

$TMPFS

Compute Nodes

Centralized repositories

Name

Intent

File System

Environment Variable

Per User Maximum

Data Lifespan

Available On

Global

Central repo of large datasets and databases

VAST

- n/a -

-

-

Login and compute nodes, Tinkercliffs only.

Each is described in the sections that follow.

Home

Home provides long-term storage for system-specific data or files, such as installed programs or compiled executables. Home can be reached the variable $HOME, so if a user wishes to navigate to their Home directory, they can simply type cd $HOME. Each user is provided a maximum of 640 GB in their Home directories (across all systems). Home directories are not allowed to exceed this limit. Note that running jobs fail if they try to write to a Home directory when the hard limit is reached.

Note

Avoid reading/writing data to/from HOME in a job or using it as a working directory. Stage files into a “scratch” location to keep unnecessary I/O off of the HOME filesystem and improve performance. /fastscratch and Local Scratch

Project

Project provide long-term storage for files shared among a research project or group, facilitating collaboration and data exchange within the group. Each Virginia Tech faculty member can request group storage up to the prescribed limit at no cost by requesting a storage allocation via ColdFront. Additional storage may be purchased through the investment computing or cost center programs.

Data ownership passes to the shared directory creator/owner

A project PI requests a shared storage directory and gives access to others. When given access to the shared directory, they will have the ability to add, modify, and delete files from the directory according to the mode (set of permissions) of the directory.

Modes get set and changed in lots of different ways, and this sometimes results in group members, even the group owner, not having access to some files or subdirectories in their shared directory. The owner(s) of such files can fix this on their own with some chmod and/or chown commands. ARC encourages shared directory owners to work with their group members to establish best practices and to make a point to ensure their files are properly culled, organized, and manageble by the group before leaving the group. ARC personnel can consult on the commands to use and best practices for implementing such a transfer.

When a project owner removes a user from their shared directory via ColdFront, that user will no longer be able to access the directory to make such changes.

We have recently (March 2022) amended the removal process so that it executes a script which will ensure the group id (gid) and mode (permissions) of every file that user owned in the shared directory is set to allow allow all group members access.

Best Practices for long-term storage

ARC policy limits the number of files and the total size of data stored in these filesystems which are designed for long-term storage. In order to avoid violating these policies, users should tar and compress data stored in these filesystems.

Tip

To “tar” means to package into single file, thereby reducing inodes. We “extract” data from a tar file. To “compress” is to reduce byte size. We “decompress/unzip” data from a compressed/zipped file.

Consider the fundamental tradeoff between compression and time. The best protocol depends heavily on the research workflow. Some questions to ask yourself:

  1. How compressible is the data?

    • Because compression algorithms take advantage of redundancy to reduce size, some data are more compressible than others. Additionally there are many options for compressing that affect the runtime and the size reduction.

    • Take the following example:

      uncompressed plaintext

      gzip

      gzip -2

      gzip -9

      xz

      xz -2

      xz -9

      xz -T 24

      xz -T 24 -9

      Size

      954M

      309M

      347M

      308M

      220M

      266M

      204M

      223M

      206M

      Time

      N/A

      0m44.706s

      0m20.155s

      1m0.805s

      7m59.689s

      1m35.004s

      11m39.037s

      0m34.547s

      2m40.020s

    • Here we are testing different tools, gzip and xz, with different options. We are varying the “compression value”, where a higher value means more compression (and more time). We also see that parallelizing reduces the time cost.

      [slima2@tc049 text_data]$ time bash -c "xz -T 24 enwik9.tar"

real    0m34.547s
user    10m21.351s
sys     0m1.509s

    • While these operations are acceptable on a login node, a compute node may be desirable, especially if parallelizing across more than the limits on the login node.

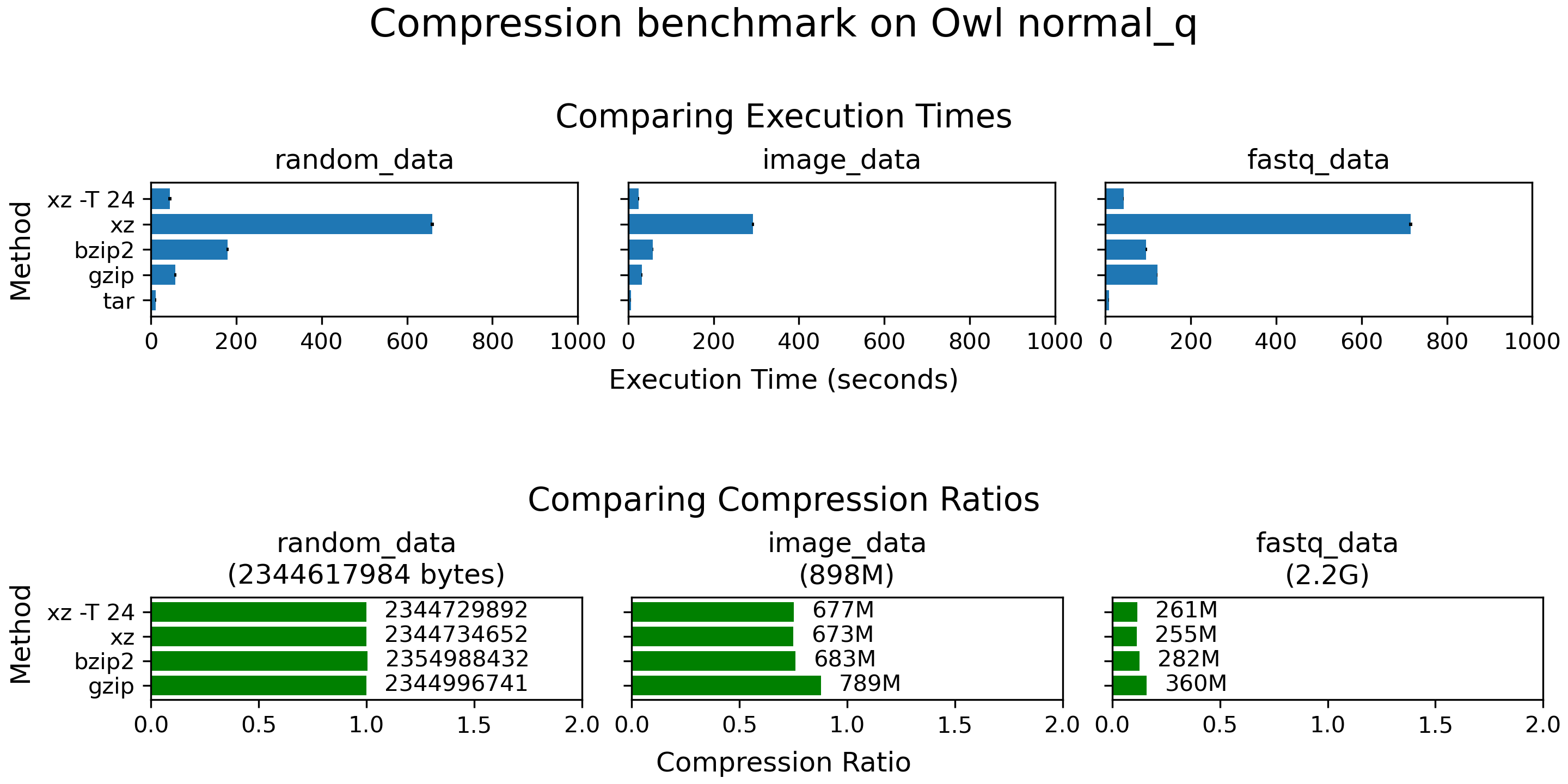

    • Every case should appreciate the gains in size over time cost. See the figure below for differences between a selection of example datasets. compression benchmark

  2. How often do you plan to extract/transfer the data?

    • If your workflow involves copying to /localscratch for better IO performance, it may be worthwhile to compress the data.

    • Some workflows use software that work directly on compressed files. This is especially the case in many bioinformatics software such as cellranger and bedtools with gzipped files in particular. Luckily, the sequencing core probably prepared your data correctly before they sent it to you.

Archive

Note

As of Fall 2023, the current storage system which hosts the VTARCHIVE storage has reached its end-of-life. We are working with individual groups with the largest footprint on how to manage data currently in place there.

The term “Archive” is meant to convey the idea of a thoughtful, curated collection whose members are discrete, well packaged and labeled. In this sense “scratch” and “work” are conceptual opposites of “archive”. VT’s ARCHIVE storage is also different in concept from a “backup”.

Archive provides users with long-term storage for data that does not need to be frequently accessed i.e. storing important/historical results. Archive is accessible from all ARC’s systems. Archive is not mounted on compute nodes, so running jobs cannot access files on it. Archive can be reached the shell variable $ARCHIVE, so if a user wishes to navigate to their Archive directory, they can simply type cd $ARCHIVE.

Since “Archival” is a long-term concept and students are generally expected to be users for a few years, they should not have or use a personal archive directory. A more appropriate arrangement would be to package and transfer data to their advisor or PI who maintains an archive of curated and packaged datasets.

Best Practices for archival storage

Because the ARCHIVE filesystem is backed by tape (a high capacity but very high latency medium), it is very inefficient and disruptive to do file operations (especially on lots of small files) on the archive filesystem itself. Archival systems are designed to move and replicate very large files; ideally users will tar all related files into singular, large files. Procedures are below:

To place data in $ARCHIVE:

  1. create a tarball containing the files in your $HOME (or $WORK) directory

  2. copy the tarball to the $ARCHIVE filesystem (use rsync in case the transfer were to fail)

To retrieve data from $ARCHIVE:

  1. copy the tarball back to your $HOME (or $WORK) directory (use rsync in case the transfer were to fail).

  2. untar the file on the login node in your $HOME (or $WORK) directory. Directories can be tarred up in parallel with, for example, gnu parallel (available via the parallel module). This line will create a tarball for each directory more than 180 days old:

find . -maxdepth 1 -type d -mtime +180 | parallel [[ -e {}.tar.gz ]] || tar -czf {}.tar.gz {}

The resulting tarballs can then be moved to Archive and directories can then be removed. (Directories can also be removed automatically by providing the --remove-files flag to tar, but this flag should of course be used with caution.)

Scratch Filesystems

VAST - Global Scratch (Tinkercliffs only)

Note

Files and directories stored here are subject to automatic deletion. Do not use it for long term storage.

Note

2025-01-13: New mounting point of /globalscratch is /scratch after Jan 6-10, 2025 maintenence. Please make changes to your code and scripts accordingly.

Local scratch storage options (see below) generally provide the best performance, but are constrained to the duration of a job and are strictly local to the compute node(s) allocated to a job. In constrast, we also have a VAST storage system which provides storage for temporary staging and working space with better performance characteristics than HOME or PROJECTS. It is “global” in the sense that it is accessible from any node on the Tinkercliffs cluster.

It is a shared resource and has limited capacity (364TB), but individual use at any point in time is unlimited provided it the space is available. A strict automatical deletion policy is in place wherein any file will be automatically deleted when it has reached an age of 90 days on /scratch.

Best practices

  • create a directory for yourself mkdir /scratch/<username>

  • stage files for a job or set of jobs

  • keep the number of files and directories relatively small (ie. less than 10,000). It is a network-attached filesystem and incurs the same performance overhead for file operations that you would get with /home or /projects.

  • immediately copy any files you want to keep to a permanent location to avoid accidental deletion

  • always remember the 90-day automatic deletion policy

Automatic Deletion Details

As mentioned above, files and directories in /scratch will be automatically deleted based on aging policies. Here is how that works:

  1. The storage system runs an hourly job to identify files which have exceeding the aging policy (90 days) and adds these to the deletion queue.

  2. The storage system runs an automated job at 12:00am UTC (7:00PM EST) every day to process the deletion queue.

  3. Additionally, the storage system will detect and delete all empty directories regardless of age.

Restoring files

In some situations, deleted files and directories may be restored from “snapshots”. Snapshots are an efficient way to keep several instances of the status of a file system at regular points in time.

For the /scratch file system, these are kept in the “hidden directory” /scratch/.snapshots which contains a set of snapshots named according to the type (daily, weekly, or monthly) and the date-time when they were recorded. For example:

/scratch/.snapshot/week_2023-11-13_12_00_00_UTC

is an instance of a weekly snapshot which was recorded on 2023-11-13 at 12:00:00PM UTC.

Snapshots may be recorded in daily, weekly, and monthly cycles, but ARC reserves the right to adjust the frequencies and quantities of snapshots which are retained. Changes in the frequencies and quantities may occasionally be needed to adjust how much of the storage system capacity is dedicated to snapshot retentions.

Note

While snapshots provide some level of protection against data loss, they should not be viewed as a “backup” or as part of a data retention plan.

VAST - Fast Scratch (deprecated - do not use)

Warning

2024-03-08: The /fastscratch filesystem on Tinkercliffs is being replaced by /globalscratch and will be removed from Tinkercliffs at the end of the 2024 Spring semester. Recover any files you need from that system before then.

While the use of scratch storage options below are constrained to the duration of a job, the VAST storage system provides a temporary staging and working space with better performance characteristics than HOME or PROJECT. It is a shared resource and has limited capacity (200TB), but individual use is unlimited provided it

Local Scratch

Running jobs are given a workspace on the local drives on each compute node which are allocated to the job. The path to this space is specified in the $TMPDIR environment variable. This provides a higher performing option for I/O which is a bottleneck for some tasks that involve either handling a large volume of data or a large number of file operations.

Note

Any files in local scratch are removed at the end of a job, so any results or files to be kept after the job ends must be copied to another location as part of the job. /scratch is a good choice for most people.

Local Drives

Running jobs are given a workspace on the local drives on each compute node. The path to this space is specified in the $TMPDIR environment variable

Solid State Drives (SSDs)

Solid state drives do not use rotational media (spinning disks/platters) but memory-like flash storage which gives it better performance characteristics. The environment variable $TMPSSD is set to a directory on an SSD accessible to the owner of a job when SSD is available on compute nodes allocated to a job.

Memory as storage

Running jobs have access to an in-memory mount on compute nodes via the $TMPFS environment variable. This should provide very fast read/write speeds for jobs doing I/O to files that fit in memory (see the system documentation for the amount of memory per node on each system). Please note that these files are removed at the end of a job, so any results or files to be kept after the job ends must be copied to Work or Home.

NVMe Drives

Same idea as Local Scratch, but on NVMe media which “has been designed to capitalize on the low latency and internal parallelism of solid-state storage devices.” Running jobs are given a workspace on the local NVMe drive on each compute node if it is so equipped. The path to this space is specified in the $TMPNVME environment variable. This provides another option for users who would prefer to do I/O to local disk (such as for some kinds of big data tasks). Please note that any files in local scratch are automatically removed at the end of a job, so any results or files to be kept after the job ends must be copied to Work or Home.

NVMe local scratch storage is available on nodes in the following nodes and capacities:

  • Cascades

    • largemem_q nodes, 1.8TB

    • k80_q nodes, 1.8TB

  • Tinkercliffs

    • a100_normal_q nodes, 11.7TB

    • intel_q nodes, 3.2TB

Global

On Tinkercliffs, the /global/ directory has been set up to provide centralized access to some commonly used databases and datasets which are large and/or have many files. All users can read these files, but for stability purposes, write permissions are only available to ARC personnel.

Some example datasets are the imagenet dataset and some biodatabases such as those neede by AlphaFold or other genomics applications. If you know of a dataset you think we should add to this repository, please let us know by submitted an ARC helpdesk request.

Checking Usage

You can check your current storage usage (in addition to your compute allocation usage) with the quota command:

[mypid@tinkercliffs2 ~]$ quota
USER       FILESYS/SET                         DATA (GiB)   QUOTA (GiB) FILES      QUOTA      NOTE
mypid      /home                               584.2        596         -          -

           GPFS
mypid      /projects/myproject1                109.3        931
mypid      /projects/myproject2                2648.4       25600
